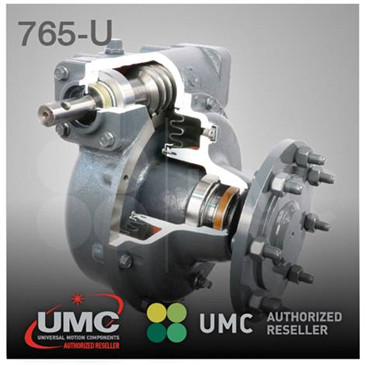

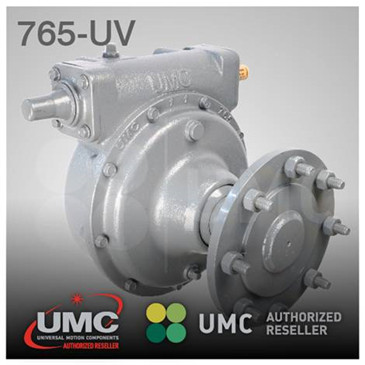

UMC’s new 765™ Series gearboxes are our largest, most durable gearboxes without bronze gears.

They are typically used for the most extreme conditions and applications such as a corner systems, lateral carts, heavy towers, and machines that run high annual hours. They are direct replacements for their predecessors the 760-U and 760-UV and feature several improvements that enhance load capacity, gear life and seal life.

The primary improvements on the 765 series are as follows: The use of UMC’s new high torque gear material which increases load capacity while minimizing gear wear. The use of a patent pending internal diaphragm that greatly reduces pressure build up and water accumulation inside the gearbox during operation. This increases the life of bearings and seals. This new product is available in both a 50:1 and 52:1 gear ratio and comes standard with UMC’s other innovative features such as: UMC’s exclusive sealing system featuring cartridge input and output seals to keep oil in and contaminants such as dirt and water out, a dual ended input shaft eliminating the need to stock right and left-hand gearboxes, a positive wheel register to evenly displace load and aid in wheel installation and a universal 13 bolt mounting pattern for easy installation on all pivot brands.

Use Scenarios

Corner System in Arid Regions
In arid regions where water conservation is critical, the UMC 765 Heavy-Duty Gearbox is employed in corner systems to provide efficient water distribution. Its robust design ensures longevity and reliable operation, even under the harsh conditions typical of such environments.

Lateral/Linear Carts in Challenging Terrain
For lateral and linear irrigation systems operating in challenging terrains, the UMC 765 Heavy-Duty Gearbox offers the necessary torque and durability. Its advanced features, including a positive wheel register and universal mounting pattern, facilitate smooth operation and easy installation, ensuring consistent irrigation across varied landscapes.

Heavy Towers with High Operational Hours
In agricultural operations where irrigation systems are subjected to heavy loads and extended operational hours, the UMC 765 Heavy-Duty Gearbox provides the required strength and endurance. Its high torque capacity and enhanced gear material reduce wear and extend service life, making it ideal for intensive agricultural applications.

FAQ

What are the gear ratios available for the UMC 765 Heavy-Duty Gearbox?
The UMC 765 Heavy-Duty Gearbox is available in 50:1 and 52:1 gear ratios, allowing for flexibility in matching system requirements.

Is the UMC 765 Heavy-Duty Gearbox compatible with all pivot brands?
Yes, it features a universal 13-bolt mounting pattern, ensuring compatibility with various pivot brands.

What maintenance is required for the UMC 765 Heavy-Duty Gearbox?
Regular inspections and lubrication are recommended to maintain optimal performance. Ensure that the seals are intact and the gear oil is at the proper level.

Can the UMC 765 Heavy-Duty Gearbox be used in corner systems?
Yes, its design is well-suited for corner systems, providing the necessary torque and durability for efficient operation.

Where can I purchase the UMC 765 Heavy-Duty Gearbox?
The gearbox can be purchased through authorized distributors listed on the Irritech website.
