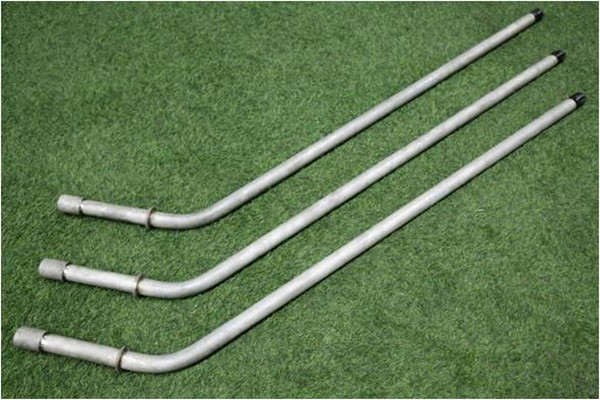

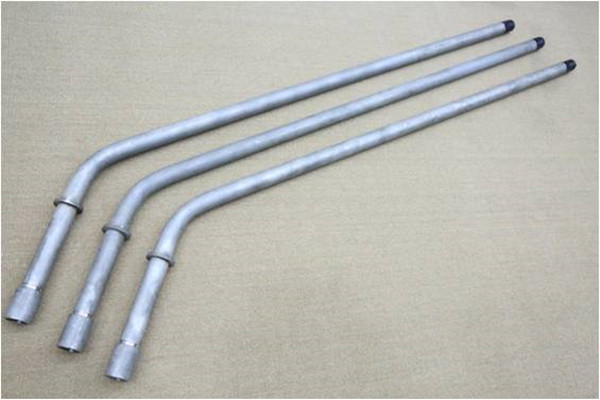

Center Pivot Span cable must be allowed to swivel at the pivot, otherwise it would be wrap itself around the pivot. It is fed from the collector ring through a pipe which is J-shaped.

Mounts on a stainless steel J-Pipe above the upper elbow to minimize water contact.

Use Scenarios

Implementation in New Center Pivot Installations

In agricultural settings deploying new center irrigation pivots, the pivot j-pipe serves as a standard cable management solution, guiding the span cable from the collector ring through the pivot point. Its stainless steel construction offers compliance with durability requirements under outdoor irrigation conditions, including exposure to water and chemical agents. The j-shaped design permits unrestricted rotational movement, preventing cable fatigue or breakage during pivot rotation. Integration by irrigation equipment suppliers within the overall pivot pipe infrastructure ensures the system meets both mechanical and electrical specifications, facilitating efficient setup and operational readiness.

Retrofit Applications for Improved Cable Management in Existing Systems

Pivot irrigation companies utilize the pivot j-pipe to upgrade existing center irrigation pivot systems where cable swirling or tangling risks exist. The retrofit installation involves mounting the j-pipe above the upper elbow to create a dedicated feed line that protects the span cable from water and external contaminants. This adaptation not only extends cable service life but also enhances system reliability by reducing maintenance frequency. By complying with standard pivot pipe configurations, the retrofit aligns with operational workflows, ensuring minimal downtime and preserving irrigation performance in varied agronomic conditions.

FAQ

What is the primary function of the J-Pipe in pivot irrigation systems?

Our J-Pipe serves as the pivot j-pipe feed line that guides the span cable from the collector ring, allowing it to swivel freely at the pivot. This ensures reliable cable movement and protects wiring from water and debris, critical for maintaining center irrigation pivot operation.

Can the J-Pipe be integrated with other irrigation equipment components?

Yes, the J-Pipe is designed to integrate seamlessly with UMC motors, gearboxes, and other components within our Pivot Parts lineup. This compatibility enhances system reliability and durability, ensuring the efficiency of your center irrigation pivot system.

How should I install the J-Pipe to ensure optimal performance?

We recommend mounting the J-Pipe above the upper elbow on a stainless steel pipe to minimize water contact. Proper installation ensures the span cable can swivel freely at the pivot, reducing wear and preventing tangling in your pivot irrigation system.

Does Irritech offer support for maintaining J-Pipe components?

We provide guidance on routine inspections to verify that the J-Pipe minimizes water contact and swiveling obstruction. If any parts show wear or corrosion, replacement is advised to maintain the overall reliability of your center pivot system under variable field conditions.
